Sewage Suction Truck

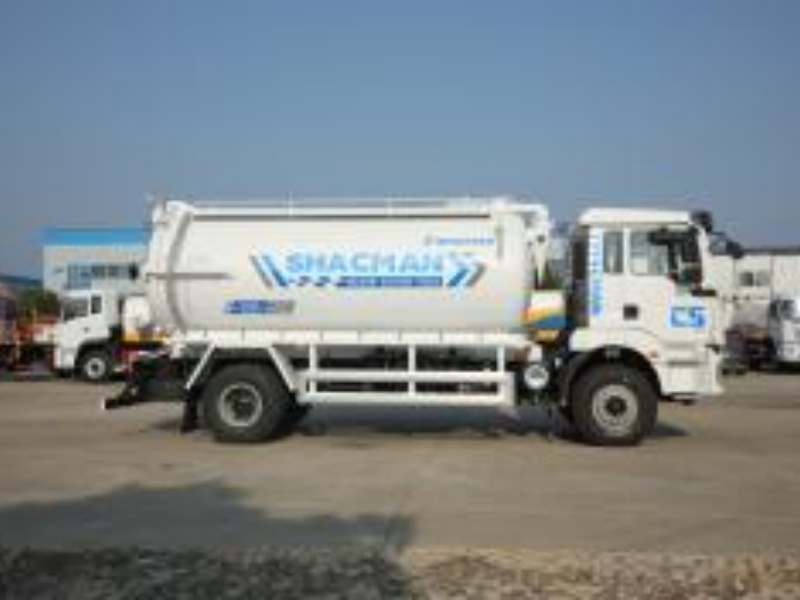

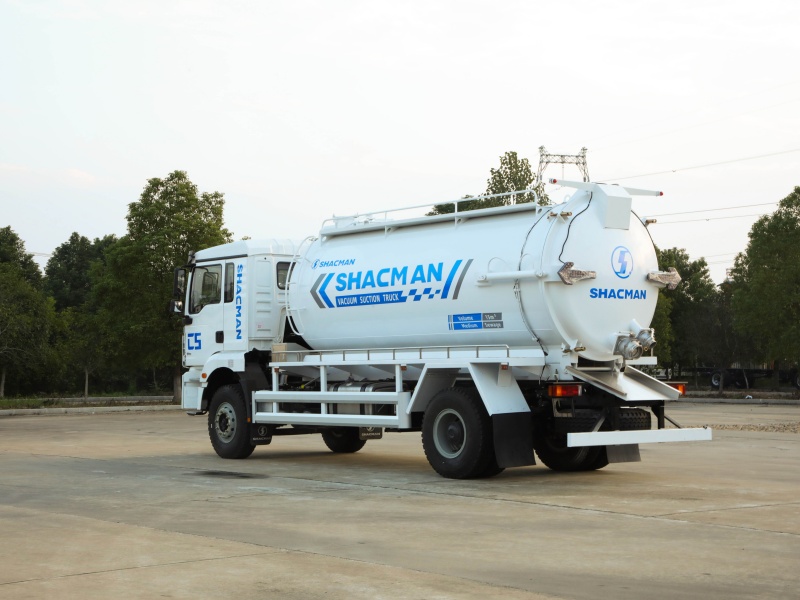

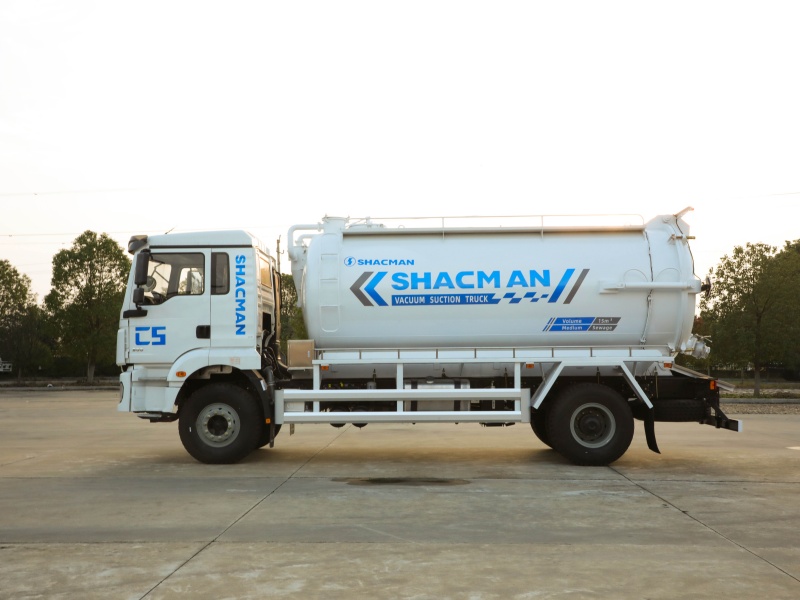

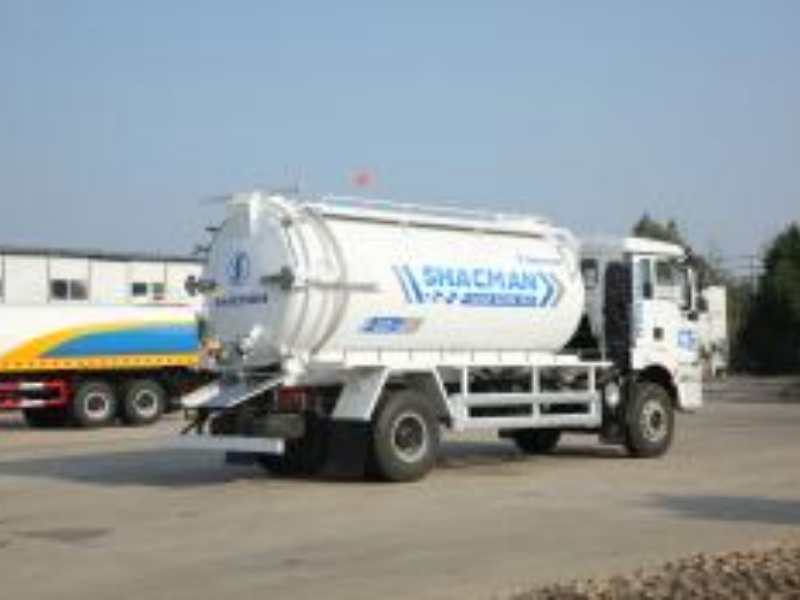

SHACMAN L3000 4×2 10-cubic-meter Sewage Cleaning Vehicle —— Efficient Sewage Discharge, Protecting Urban Pipeline Health
Detailed Introduction of SHACMAN L3000 4×2 10-cubic-meter Sewage Cleaning Vehicle
1. Chassis Core: Shaobi Heavy Truck Technology Assurance, More Stable Heavy-load Operations
The SHACMAN L3000 4×2 10-cubic-meter sewage cleaning vehicle is based on the Shaobi DeLong L3000 medium-duty chassis. It continues to adopt the military-grade manufacturing standards of Shaobi Heavy Trucks, making it a core equipment for municipal sanitation, property management communities, and industrial enterprises' sewage discharge and cleaning. It perfectly suits the operational needs of various regions worldwide.
• Power System: Standardly equipped with a Weichai WP6.220E50 Euro VI engine (220 horsepower, 162kW), providing low-speed high-torque output, abundant power for climbing and starting under full-load 10-cubic-meter working conditions, excellent fuel economy, and meeting domestic and overseas emission regulations; optional Yuchai YC4EG series power, suitable for different regional customer needs. It is matched with the Fatai 8JS85T classic 8-speed transmission, smooth shifting, high transmission efficiency, suitable for the frequent start-stop and heavy-load operation characteristics of the sewage cleaning vehicle, effectively reducing fuel costs during long-term operation.
• Chassis Structure: 4×2 drive form, 4500mm golden axle distance, compact and flexible body, easily navigating through urban narrow streets, old residential areas, factory workshops, etc.; the frame is made of high-strength alloy steel, with full anti-twist and anti-shock performance, paired with 10.00R20 wear-resistant steel wire tires, strong load-bearing capacity, excellent stability in bumpy road conditions; the braking system is upgraded to front disc rear drum braking, combined with ABS anti-lock system, exhaust braking, with rapid braking response for heavy-load operations, providing comprehensive safety protection.
• Cab Configuration: DeLong L3000 wide one-row semi-cab, spacious and transparent, standard with air conditioning, electric windows, central locking, hydraulic shock-absorbing seats, significantly reducing driver fatigue during long-distance operations; the cab adopts soundproof and shock-absorbing design, effectively isolating operation noise; supports export customization of left/right steering, different country regulations certification (such as EU WVTA, Middle East GSO, etc.), suitable for global regional operation standards.
Upper Structure System
10-cubic-meter Large Capacity, All-round Vacuum Suction Capability
The upper body part adopts industry-leading sanitation-specific design, featuring a 10 cubic meter (10,000L) standard volume tank. It can be customized with a 12-15 cubic meter expansion version according to customer needs, suitable for various sewage suction and transportation requirements.
• Tank manufacturing: The tank is made of Q235 high-quality carbon steel (4mm thick plates + 4mm head), formed by automated panel welding and ring automatic welding processes. The welds are uniform and leak-free; the inside of the tank undergoes multiple layers of anti-corrosion and rust-proof treatments, capable of withstanding corrosive media such as sewage, sludge, and fecal matter for a long time, with a service life of over 10 years; the tank adopts an elliptical structure design to lower the center of gravity during travel and enhance stability, and is internally equipped with reinforcing ribs to enhance the tank's impact resistance.
• Suction operation system: Equipped with a high-power SK-12 water ring vacuum pump (or rotary vane vacuum pump), with a maximum vacuum degree of ≥ -0.09MPa, a maximum suction depth of up to 8 meters, and a suction efficiency of ≥ 90m³/h, it can quickly complete the suction of sewage from septic tanks, sewers, sewage pools, and biogas tanks; it is equipped with a 4-6 meter long high-strength suction pipe with a diameter of 100-150mm, with no suction blockage; the tank adopts a hydraulic lifting and dump design, with an elevation angle of ≥ 45°, ensuring thorough sewage discharge without residue, and is equipped with a manual emergency discharge device to handle unexpected situations.
• Safety and convenience configuration: Standard features include overflow valve, vacuum pressure gauge, sewage viewing window, and liquid level alarm, for real-time monitoring of the tank's negative pressure and sewage liquid level, eliminating risks of overflow and negative pressure overload; the tank top is equipped with a non-slip operation platform and safety guardrail to ensure the safety of operators; all pipelines and valves are made of corrosion-resistant stainless steel, resistant to acids and alkalis, easy to maintain, with a bolt connection design, making disassembly and maintenance convenient; it supports the installation of high-pressure cleaning reels and nozzles, upgrading to a "suction" two-in-one model, suitable for various scenarios such as pipeline cleaning and sewer dredging.
• Customization options: Supports upgrading the tank material to stainless steel, suitable for stronger corrosive industrial wastewater transportation; optional features include GPS positioning system, video monitoring, reverse camera/radar, enabling full-process visualization management of operations; supports customized configurations at the outlet, suitable for different national environmental protection and safety regulations, meeting the personalized needs of overseas customers.
Application scenarios and product value
The SHACMAN L3000 4×2 10 cubic meter sewage suction vehicle is a versatile municipal sanitation operation vehicle, widely used in：
• Municipal sanitation: dredging, suction, and transportation of sewers, septic tanks, and sewage networks in cities, maintaining the smoothness of the urban drainage system；
• Residential areas: regular cleaning of septic tanks and sewage wells in residential areas, ensuring the living environment of residents；
• Industrial and mining enterprises: sewage suction and transportation from factory sewage tanks, sedimentation tanks, and biogas tanks, as well as industrial wastewater treatment support；
• Emergency rescue: emergency sewage discharge and rescue operations in cases of urban flooding, pipe blockages, and sewage leakage.
The entire vehicle has passed strict reliability tests, and the L3000 4X2 sewage suction vehicle safeguards the health of urban pipelines.
specification
| Modle: | SHACMAN SX3318DT404 | Engine: | Diesel |
| Transmission: | Manual | Axle: | MAN 2*9.5T /2*16T Double-stage,speed Ratio-5.92 |
| Wheel Base: | 1800+3775+1400mm | Tire: | 12.00R20 |
| Fuel Tank: | 400L | Clutch: | p430 Diaphragm Spring Clutch |
| Air Inlet: | Ordinary Air Filter | Chassis: | 850x300(8+7) |
| Suspension: | Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts | Cabin: | Medium-length Flat Top |
